ARDEX - WPM 185
ARDEX - WPM 185
Couldn't load pickup availability

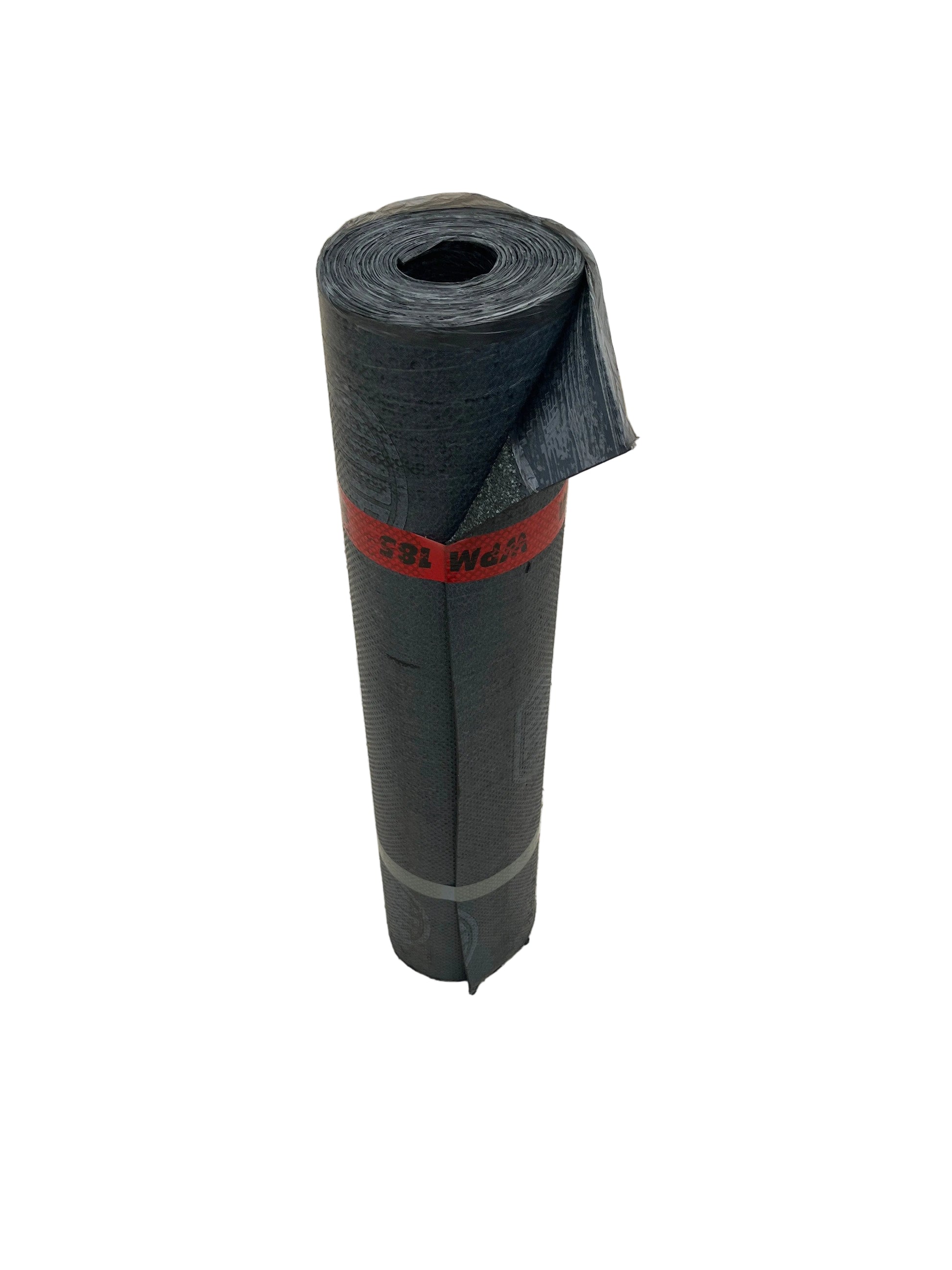

The ARDEX WPM 185 is an A.P.P. (Atactic Polypropylene) Plastomeric type modified bitumen membrane, consisting of a specially formulated bituminous compound of distilled asphalt modified with selected high-grade visco-elastic polymers. It is reinforced with a combined reinforcement of Polyester and Fibreglass. The membrane is compliant to AS4654.1.
It is typically used as a capping layer in UV exposed membrane systems.
Key Features & Benefits for Your Project:
- Excellent UV and Atmospheric Resistance: Offers excellent resistance to UV exposure and atmospheric agents.
- High Puncture Resistance: Features high puncture resistance.
- Anti-Blistering Technology: The embossed bottom surface is designed to allow gases to rapidly escape when heated to the correct installation temperature, avoiding possible problems of bubbling and blistering. * Built-in Temperature Gauge: The bottom surface is protected by a heat-sensitive polythene film, which acts as a temperature gauge during application. When the film melts, it indicates that the compound is at the correct temperature.
- Cold Flexibility: The membrane has a cold flexibility of −5∘C.
- Finish Options: Available in both slate grey mineral and white mineral finishes.
Applications
ARDEX WPM 185 is used as a capping layer in UV exposed membrane systems for environments such as:
- Rooftops
- Decks
- Terraces
- Tanking environments
The mineral finish allows for light maintenance foot traffic. It can be used as a single layer UV exposed waterproofing membrane, but is generally installed within a multi-layer system.
Technical Specifications (Nominal Values):
| Characteristics | Nominal Value | Test Method |
| Length | 8mm | EN 1848-1 |
| Width | 1m | EN 1848-1 |
| Thickness | 4mm | EN 1849-1 |
| Aeric Mass | 4.5kg/m2 | EN 1849-1 |
| Watertightness (A) | 60kPa | EN 1928 |
| Tensile Strength (Longitudinal) | 700 N/50mm | EN 12311-1 |
| Tensile Strength (Transversal) | 550 N/50mm | EN 12311-1 |
| Elongation at Break (Longitudinal) | 40% | EN 12311-1 |
| Elongation at Break (Transversal) | 45% | EN 12311-1 |
| Flexibility at Low Temperature | −5∘C | EN 1109 |
| Flow Resistance at Elevated Temperature | 120∘C | EN 1110 |
| Surface Finish (Top) | Mineral Granules | - |
| Surface Finish (Lower) | Polymeric Film PE/PP | - |
White Mineral Finish Only:
- Solar Reflectance: 70% (ASTM E-903)
- Infrared Emittance: 90% (ASTM E-903)
- Solar Reflect Index (SRI): 80% (ASTM E-1980)
Guarantee: ARDEX Australia Pty Ltd guarantees this product is free from manufacturing defects and will perform to any applicable specification published by them for 10 years from the date of purchase.
Product TDS click here.
